System Workbench for STM32

Forum List Topic List

You are viewing a reply to Setting SW4STM32 to debug an external project (created without CubeMX)?

Setting SW4STM32 to debug an external project (created without CubeMX)?

Posted by MaximeCh on 2017-10-01 20:52

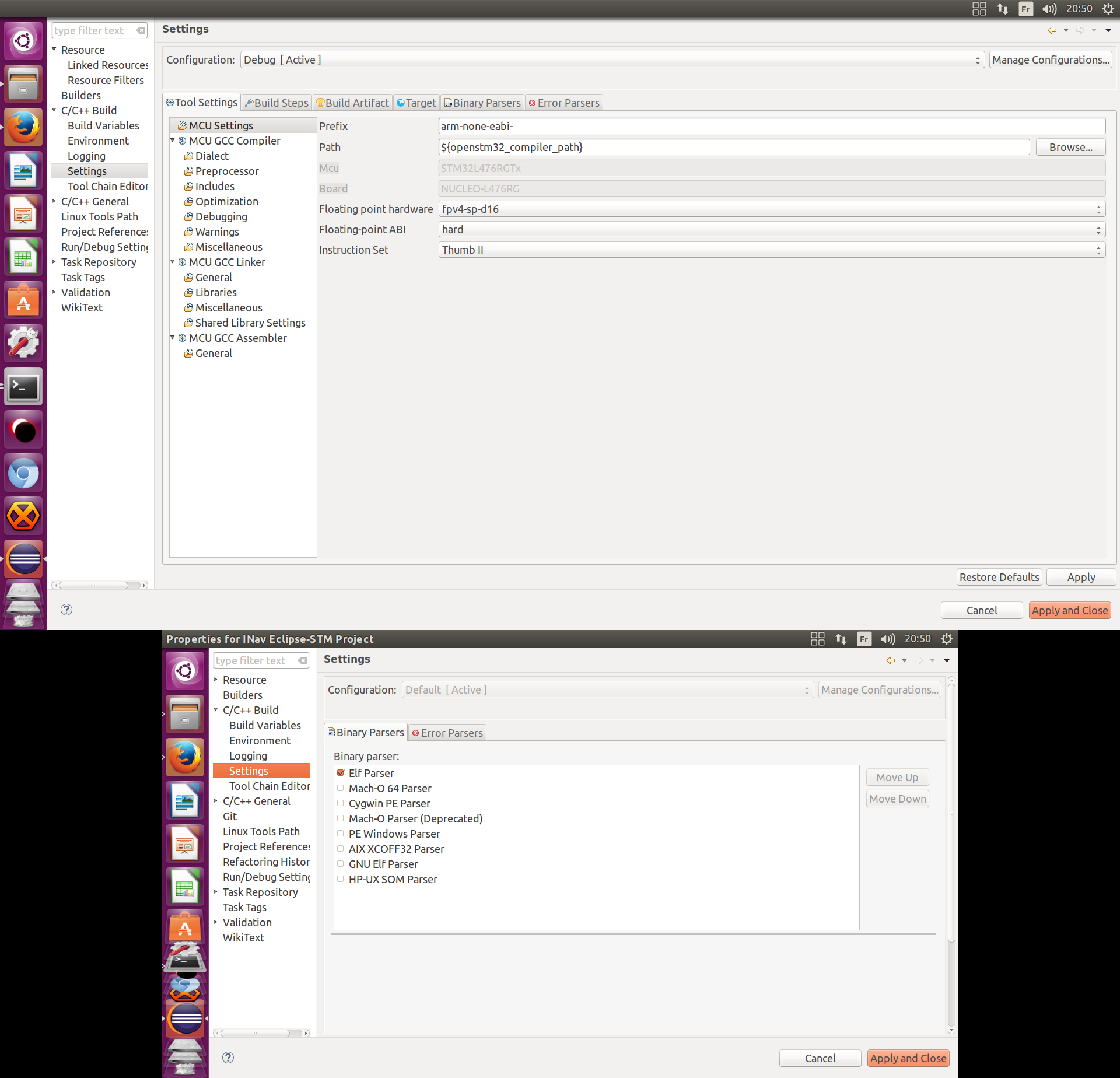

I found that settings are missing a few tabs in my github workspace compared to the CubeMX-generated LED_blink workspace :
Screenshot From 2017 10 01 20 50 11
Project files are hidden on linux?

Reads: 3135
Link
Posted by dautrevaux on 2017-10-01 21:16 France

Hi,

It seems that, for the second screenshot, you do not create an Ac6 System Workbench project, but a standard Eclipse project, perhaps a Makefile CDT project, where you set up the compiler manually in the Makefile and debug configuration.

Please follow the tutorial on Getting started with System Workbench for STM32 to create your first project, it will be simpler.

Regarding the project definition files, their names are “.project” and “.cproject”, meaning they are hidden files on Linux. To see them you should either use the “-a” option of “ls” on the command line or parameterize the file explorer to show hidden files. In the project explorer view of System Workbench for STM32, open the “View Menu”, select “Customize view” and deselect “.* resources”. 2017 10 01 211435

Bernard (Ac6)

Link
Posted by MaximeCh on 2017-10-01 23:53

Thank you for your inputs! I indeed managed to start a new Ac6 project, build and launch debugging.
Best regards.

Link
