Trouble launching debugger after upgrade to Eclipse 2020-3

Posted by fxrb on 2020-03-23 17:43

Hello,

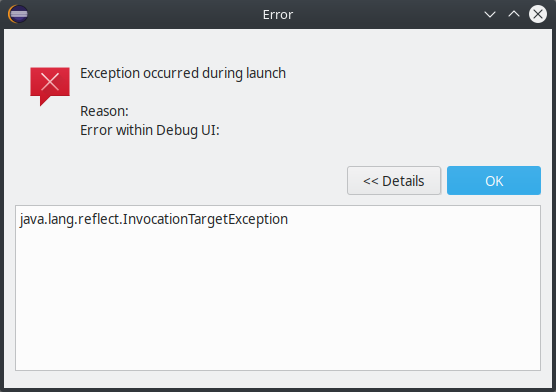

After upgrading to Eclipse 2020-3 (4.15.0) launching the debugger fails with a window popping up saying “Error within Debug UI:”:

Error Within Debug Ui

Eclipse logs the following:

LD_LIBRARY_PATH=/home/felix/tmp/eclipse-uprade-testing/eclipse/plugins/fr.ac6.mcu.externaltools.openocd.linux64_1.23.0.201904120827/tools/openocd/lib

OpenOCD launch command (run in /mnt/jupiter-smb/projekte/EETS/Development/Software/tlc-003):
/home/felix/tmp/eclipse-uprade-testing/eclipse/plugins/fr.ac6.mcu.externaltools.openocd.linux64_1.23.0.201904120827/tools/openocd/bin/openocd -f tlc-003.cfg -s /mnt/jupiter-smb/projekte/EETS/Development/Software/tlc-003 -s /home/felix/tmp/eclipse-uprade-testing/eclipse/plugins/fr.ac6.mcu.debug_2.5.0.201904120827/resources/openocd/st_scripts -c gdb_port 3333 -c tcl_port 6666 -c telnet_port 4444

I’m not sure where the problem is but it seems related to the System Workbench for STM32. On a fresh installation of Eclipse version 2019-12 everything is fine. The problem exists for LINUX (Ubuntu 18.04) as well as for Windows 10. Is there anything I can do to get some more information about this error?

many thanks, Felix

Reads: 4879
Link
Posted by fxrb on 2020-03-24 08:15

Here is some additional information from the error log.

The plugin concerned is is Debug UI (org.eclipse.debug.ui). Following is the stack trace:

java.lang.reflect.InvocationTargetException
at org.eclipse.jface.operation.ModalContext.run(ModalContext.java:397)
at org.eclipse.jface.dialogs.ProgressMonitorDialog.run(ProgressMonitorDialog.java:469)
at org.eclipse.ui.internal.progress.ProgressMonitorJobsDialog.run(ProgressMonitorJobsDialog.java:237)
at org.eclipse.ui.internal.progress.ProgressManager.lambda$26(ProgressManager.java:820)
at org.eclipse.swt.custom.BusyIndicator.showWhile(BusyIndicator.java:72)
at org.eclipse.ui.internal.progress.ProgressManager.busyCursorWhile(ProgressManager.java:853)
at org.eclipse.ui.internal.progress.ProgressManager.busyCursorWhile(ProgressManager.java:829)
at org.eclipse.debug.internal.ui.DebugUIPlugin.launchInForeground(DebugUIPlugin.java:1103)
at org.eclipse.debug.ui.DebugUITools.launch(DebugUITools.java:980)
at org.eclipse.debug.ui.DebugUITools.launch(DebugUITools.java:784)
at org.eclipse.launchbar.ui.internal.commands.LaunchActiveCommandHandler.execute(LaunchActiveCommandHandler.java:43)
at org.eclipse.ui.internal.handlers.HandlerProxy.execute(HandlerProxy.java:283)
at org.eclipse.ui.internal.handlers.E4HandlerProxy.execute(E4HandlerProxy.java:97)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:566)
at org.eclipse.e4.core.internal.di.MethodRequestor.execute(MethodRequestor.java:58)
at org.eclipse.e4.core.internal.di.InjectorImpl.invokeUsingClass(InjectorImpl.java:318)
at org.eclipse.e4.core.internal.di.InjectorImpl.invoke(InjectorImpl.java:252)
at org.eclipse.e4.core.contexts.ContextInjectionFactory.invoke(ContextInjectionFactory.java:173)
at org.eclipse.e4.core.commands.internal.HandlerServiceHandler.execute(HandlerServiceHandler.java:156)
at org.eclipse.core.commands.Command.executeWithChecks(Command.java:488)
at org.eclipse.launchbar.ui.controls.internal.LaunchBarControl$1.widgetSelected(LaunchBarControl.java:162)
at org.eclipse.swt.widgets.TypedListener.handleEvent(TypedListener.java:252)
at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:89)
at org.eclipse.swt.widgets.Display.sendEvent(Display.java:5687)
at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1423)
at org.eclipse.swt.widgets.Display.runDeferredEvents(Display.java:4955)
at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:4448)
at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine$5.run(PartRenderingEngine.java:1160)
at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:338)
at org.eclipse.e4.ui.internal.workbench.swt.PartRenderingEngine.run(PartRenderingEngine.java:1049)
at org.eclipse.e4.ui.internal.workbench.E4Workbench.createAndRunUI(E4Workbench.java:155)
at org.eclipse.ui.internal.Workbench.lambda$3(Workbench.java:658)
at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:338)
at org.eclipse.ui.internal.Workbench.createAndRunWorkbench(Workbench.java:557)
at org.eclipse.ui.PlatformUI.createAndRunWorkbench(PlatformUI.java:154)
at org.eclipse.ui.internal.ide.application.IDEApplication.start(IDEApplication.java:150)
at org.eclipse.equinox.internal.app.EclipseAppHandle.run(EclipseAppHandle.java:203)
at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.runApplication(EclipseAppLauncher.java:137)
at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.start(EclipseAppLauncher.java:107)
at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:401)
at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:255)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:566)
at org.eclipse.equinox.launcher.Main.invokeFramework(Main.java:657)
at org.eclipse.equinox.launcher.Main.basicRun(Main.java:594)
at org.eclipse.equinox.launcher.Main.run(Main.java:1447)
at org.eclipse.equinox.launcher.Main.main(Main.java:1420)
Caused by: java.lang.NoSuchMethodError: ‘void org.eclipse.debug.internal.core.StreamsProxy.(java.lang.Process, java.lang.String)’
at fr.ac6.mcu.debug.openocd.processanalyzer.logger.OpenOCDStreamsProxy.(OpenOCDStreamsProxy.java:20)
at fr.ac6.mcu.debug.openocd.processanalyzer.logger.OpenOCDRuntimeProcess.createStreamsProxy(OpenOCDRuntimeProcess.java:268)
at fr.ac6.mcu.debug.openocd.processanalyzer.logger.OpenOCDRuntimeProcess.(OpenOCDRuntimeProcess.java:105)
at fr.ac6.mcu.debug.launching.MCUGdbProcessFactory.newProcess(MCUGdbProcessFactory.java:46)
at org.eclipse.debug.core.DebugPlugin.newProcess(DebugPlugin.java:802)
at fr.ac6.mcu.debug.launching.MCUGdbLaunch.addOpenOCDProcess(MCUGdbLaunch.java:131)
at fr.ac6.mcu.debug.launching.MCUGDBJtagDSFLaunchConfigurationDelegate.launch(MCUGDBJtagDSFLaunchConfigurationDelegate.java:315)
at org.eclipse.debug.internal.core.LaunchConfiguration.launch(LaunchConfiguration.java:860)
at org.eclipse.debug.internal.core.LaunchConfiguration.launch(LaunchConfiguration.java:719)
at org.eclipse.debug.internal.ui.DebugUIPlugin.buildAndLaunch(DebugUIPlugin.java:1017)
at org.eclipse.debug.internal.ui.DebugUIPlugin.lambda$5(DebugUIPlugin.java:1097)
at org.eclipse.jface.operation.ModalContext$ModalContextThread.run(ModalContext.java:122)

I’m still not sure if reporting in this forum is correct, regards Felix

Link

Posted by tang on 2020-03-24 09:05

Hi Felix,

I’m sorry but the Eclipse ver. 2020-x is not supported as some core code in the C/C++ debug has changed. There is no fix for now.
Anyway, thank you for the report.

Regards,
Kevin.

Link
Posted by fxrb on 2020-03-24 09:13

Hello Kevin,

Thanks for the quick answer!
Well, then I will continue using Eclipse 2019-12 until a fix becomes available.

many thanks and kind regards, Felix

Link
Posted by Denis Lebel on 2020-03-24 14:12

There are few post happening lately so I go no bits on my previous post. Anyway I also have debugger issues, I get a “undefined debug error 7 ” upon trying to access the target to debug. Since I just installed the ide I will check to see if the version I loaded is an older one or not. Is the 2020-3 version you refer to a beta or was it in realeased stage?

Thanks...Denis

Link
Posted by tang on 2020-03-24 15:31

I don’t think your issue is because of the tool version.
It looks like the debugger can’t communicate with your board. There is a ST tool (STM32 STLink Utilities) to check if your machine can connect to the board : https://www.st.com/en/development-tools/stsw-link004.html.Question

Also verify that the switch on your board are connected to use the ST-Link and every drivers are well-installed on your machine.

Regards.

Link

Posted by DM128 on 2020-05-02 13:11

Same trouble occured on win 10 + eclipse 202003(clean or 2019 uprgaded) + sw4stm32 plagin.
Message
An internal error occurred during: “Launching test Debug”.
org.eclipse.debug.internal.core.StreamsProxy.(Ljava/lang/Process;Ljava/lang/String;)V
looks like eclipse problem to run java injection code.
other toolchain report This usage of java/lang/Runtime.exec([Ljava/lang/String;)Ljava/lang/Process; can be vulnerable to Command Injection
But I’ve no idea to fix the bug.
Who can find right way?

New Bitmap Image.bmp (291.18 Kb)
Link
Posted by DM128 on 2020-05-02 13:28

Error log:


java.lang.NoSuchMethodError: org.eclipse.debug.internal.core.StreamsProxy.(Ljava/lang/Process;Ljava/lang/String;)V
at fr.ac6.mcu.debug.openocd.processanalyzer.logger.OpenOCDStreamsProxy.(OpenOCDStreamsProxy.java:20)
at fr.ac6.mcu.debug.openocd.processanalyzer.logger.OpenOCDRuntimeProcess.createStreamsProxy(OpenOCDRuntimeProcess.java:268)
at fr.ac6.mcu.debug.openocd.processanalyzer.logger.OpenOCDRuntimeProcess.(OpenOCDRuntimeProcess.java:105)
at fr.ac6.mcu.debug.launching.MCUGdbProcessFactory.newProcess(MCUGdbProcessFactory.java:46)
at org.eclipse.debug.core.DebugPlugin.newProcess(DebugPlugin.java:802)
at fr.ac6.mcu.debug.launching.MCUGdbLaunch.addOpenOCDProcess(MCUGdbLaunch.java:131)
at fr.ac6.mcu.debug.launching.MCUGDBJtagDSFLaunchConfigurationDelegate.launch(MCUGDBJtagDSFLaunchConfigurationDelegate.java:315)
at org.eclipse.debug.internal.core.LaunchConfiguration.launch(LaunchConfiguration.java:860)
at org.eclipse.debug.internal.core.LaunchConfiguration.launch(LaunchConfiguration.java:719)
at org.eclipse.debug.internal.ui.DebugUIPlugin.buildAndLaunch(DebugUIPlugin.java:1017)
at org.eclipse.debug.internal.ui.DebugUIPlugin$2.run(DebugUIPlugin.java:1220)
at org.eclipse.core.internal.jobs.Worker.run(Worker.java:63)

Link
Posted by DM128 on 2020-05-02 13:41

At leat I see in both error logs same sintacs error - one sign in the end of row after bracket
Windows
java.lang.NoSuchMethodError: org.eclipse.debug.internal.core.StreamsProxy.(Ljava/lang/Process;Ljava/lang/String;)V
Linux
Caused by: java.lang.NoSuchMethodError: ‘void org.eclipse.debug.internal.core.StreamsProxy.(java.lang.Process, java.lang.String)’

Link
Posted by a.karapatis on 2020-05-08 13:56
I have the same issue. 2020-03 cannot start the debugger
