[ prev topic ]

export cube mx project

Posted by huegene on 2017-05-19 13:49

Hi,
after successfully using the cube mx generator for a project, I atempted to copy it (export to zip) and use it for a similar project. It turns out AC6 does not copy the cube mx files, hence the copy does not compile because it is missing files. How do I copy such a project propperly?

regards
huegene

Reads: 9907

Link

Posted by jLn_38 on 2017-05-23 11:24

Hi huegene,

The Export-to-archive feature in System Workbench should always work if the “Generate Under Root” CubeMx option was checked before code generation.

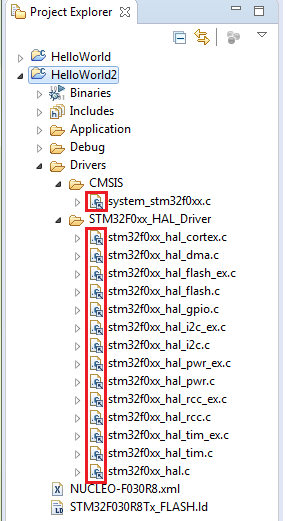

If not, Driver sources and headers are stored from outside System Workbench workspace, case visible from the ProjectExplorer:

And are not part of default Export configuration:

Note that even if “Resolve and export linked resources” is checked the Export will still not contain the header files... You will have to manually copy them separatly from your archive, and place them in the parent folder of SW workspace. This is a workaround for a known issue, that’s why I could only suggest you to correctly setup your CubeMx project before generating it if you want to share it among environements.

Link

Posted by huegene on 2017-06-06 16:30

Thank you very much

Link
