System Workbench for STM32


I can build/download the sensor tile kit demo SW, but the debugger says it cant find the source

I built the software by just pasting the entire en.stsw-stlk01 folder structure in my workspace folder and then navigating down through the directory structure until I found a project file with the butterfly logo and then clicking on it (see attached).

The build works, takes about 22 seconds to complete, and I can download/run the resulting elf file on the sensor tile (via my nucleo board) and it does run! :-)

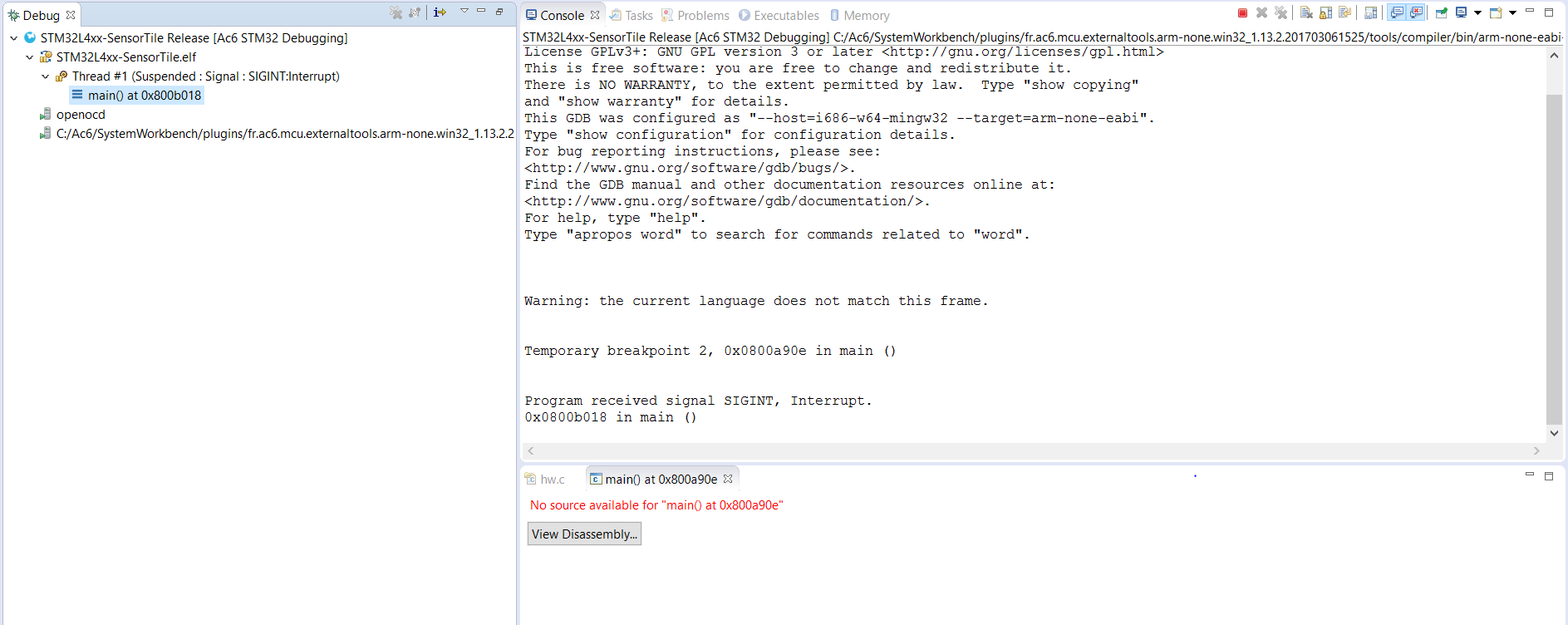

Unfortunately, I can’t set breakpoints in the code because the debugger reports that it can’t find the source file (for main.c - see attachment 2).

I suspect that the problem is that the project is not setup in the normal way an ac6/eclipse project is structured, but can anyone tell me how I might correct the problem?

I had the same issue. Fixed it by setting the following compiler debugging flags: -g3 -ggdb ...

This can be found in properties|C/C++ Build|Settings
