Trouble trying to debug test application with System Workbench for stm32
I haven’t been able to figure out how to get this IDE working. I’m stuck trying to start a debugging session for an example code generated on STM32 Cube MX.
I’m using windows 8.1 on a x64 machine with a Stm32f4 Discovery board, but I also have a Stm32f411 Nucleo with equal results.
I’ve followed the instructions on the http://www.openstm32.org/Importing+a+STCubeMX+generated+project?structure=Documentation page. The thing is that I still can´t manage to get this thing to debug or compile my test project.
I´ve already installed the updates with the Help>> Check for updates… as recommended on the installation page.
I installed all the updates from “fr.ac6… “

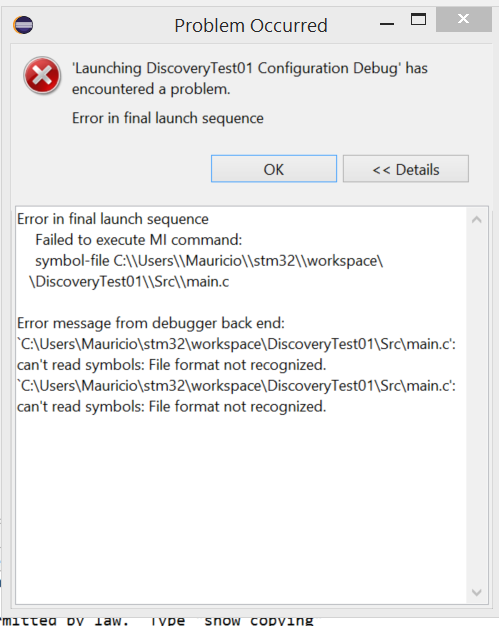

I’m getting the following error message:
The text is:
Error in final launch sequence
Failed to execute MI command:
symbol-file C:\Users\Mauricio\stm32\workspace\DiscoveryTest01\Src\main.c
Error message from debugger back end:
`C:\Users\Mauricio\stm32\workspace\DiscoveryTest01\Src\main.c’: can’t read symbols: File format not recognized.
`C:\Users\Mauricio\stm32\workspace\DiscoveryTest01\Src\main.c’: can’t read symbols: File format not recognized.
I’m also getting this warning in the problems tab on eclipse:
Description Resource Path Location Type
Invalid project path: Include path not found (C:\Users\Mauricio\stm32\workspace\DiscoveryTest01\SW4STM32\DiscoveryTest01 Configuration\Debug). DiscoveryTest01 Configuration pathentry Path Entry Problem
Does anyone know how to solve this problem? I still haven’t been able to figure it out.
Thanks and regards.
