Semihosting with OpenSTM32 and STM32F446RE Nucleo

Posted by rnunes on 2016-06-14 12:35
How can I implement semihosting for printf in OpenSTM32? I’m using STM32F446Re nucleo board (ST Link included) using provided OpenOCD.
Reads: 21365
Link
Posted by tarek bouchkati on 2016-06-14 12:52 Tunisia

you need to:

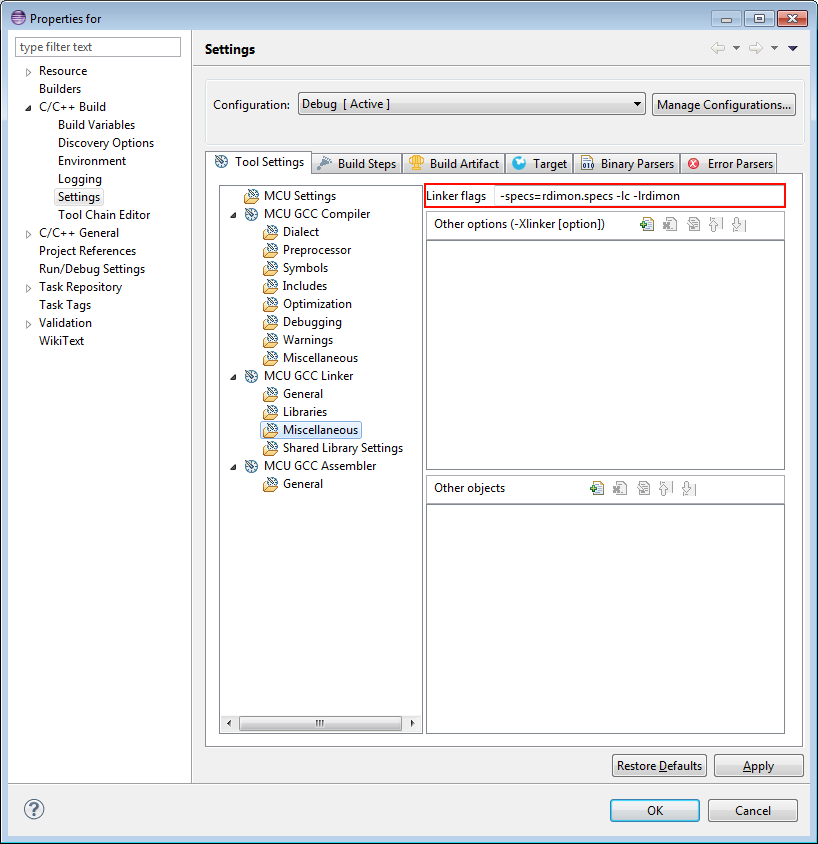

  1. add “-specs=rdimon.specs -lc -lrdimon” to (Project -> Properties -> C/C++ Build -> Settings -> MCU GCC Linker -> Linker flags)
  2. add extern void initialise_monitor_handles(void); above main
  3. add initialise_monitor_handles(); at the beggening og main function
  4. use printf, putc, puts to output messages via semihosting


Another thing you need to add “monitor arm semihosting enable” to intitialization commands in your debug configuration

Link
Posted by rnunes on 2016-06-14 14:28

If I do that I get “multiple definition of `initialise_monitor_handles’” error (syscalls.c redefine it). If I remove syscalls.c from the build (right click on file -> Resource configurations -> Exclude from Build) I get “undefined reference to `initialise_monitor_handles()’”.

Any tip here?

Link
Posted by tarek bouchkati on 2016-06-14 14:52 Tunisia
try “-specs=nosys.specs -specs=rdimon.specs -lc -lrdimon” in (Project -> Properties -> C/C++ Build -> Settings -> MCU GCC Linker -> Linker flags)
Link
Posted by tarek bouchkati on 2016-06-14 16:32 Tunisia
have tried this (adding “-specs=nosys.specs” to linker flags & without syscalls.c)
Link
Posted by rnunes on 2016-06-14 15:27
I did that in the first place, but the error occurred. Can’t figure out why though
Link
Posted by tang on 2016-06-14 16:12

Can you copy the Linker command and output from the Console View?

Regards.

Link
Posted by rnunes on 2016-06-15 09:59

arm-none-eabi-g++ -mcpu=cortex-m4 -mthumb -mfloat-abi=hard -mfpu=fpv4-sp-d16 -L”path/to/lib1” -L”path/to/lib2” -L”path/to/lib3” -L”path/to/lib4” -specs=nano.specs -specs=rdimon.specs -lc -lrdimon -T”path/to/myproject\LinkerScript.ld” -Wl,-Map=output.map -Wl, -gc-sections -fno-exceptions -fno-rtti -o “gateway.elf” @”objects.list” -llib1 -llib2 -llib3 -llib4

I deleted library folder paths and name because I shouldn’t publish those names. If I put syscalls.c on build path I get this:

src/syscalls.o: In function `initialise_monitor_handles’:
D:.../src/syscalls.c:72: multiple definition of `initialise_monitor_handles’
c:/ac6/systemworkbench/plugins/fr.ac6.mcu.externaltools.arm-none.win32_1.7.0.201602121829/tools/compiler/bin/../lib/gcc/arm-none-eabi/5.2.1/../../../../arm-none-eabi/lib/armv7e-m/fpu\librdimon_nano.a(rdimon-syscalls.o):syscalls.c:(.text.initialise_monitor_handles+0x0): first defined here

and then repeated for every function in syscalls.c, followed by undefined reference to `initialise_monitor_handles()’ in main.cpp

Link
Posted by tang on 2016-06-15 11:09

Your project is in C++. The C functions from libraries should be declared in extern “C” to be used in C++.

Replace :
extern void initialise_monitor_handles(void);
by
extern “C” void initialise_monitor_handles(void);

Hope it works,
Kevin.

Link
Posted by tikonen on 2017-09-13 11:59

Thanks! This helped me.

I needed this to work in the QEMU and the corresponding options to enable semihosting in the emulator are:

“C:\Program Files\GNU ARM Eclipse\QEMU\2.8.0-201612271623-dev\bin\qemu-system-gnuarmeclipse.exe” -verbose -verbose -board STM32F4-Discovery -nographic -d unimp,guest_errors -semihosting --image myimage.elf

Link

Posted by brian.dang@panavision.com on 2017-09-23 02:13

Don’t forget to have \n when using printf or it won’t show up, as below:
printf(“%x\n”, test0); // print out variable test0 on the debug console.

puts() doesn’t need \n
