Breakpoint Does Not Stop When Run in Debug

Posted by gjsudario on 2021-05-16 08:48

Hi,

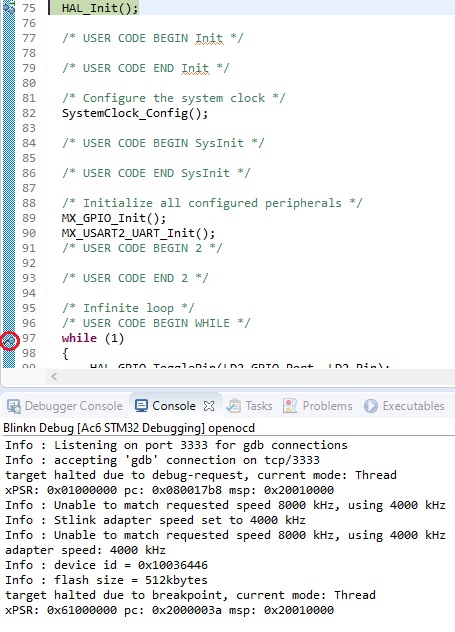

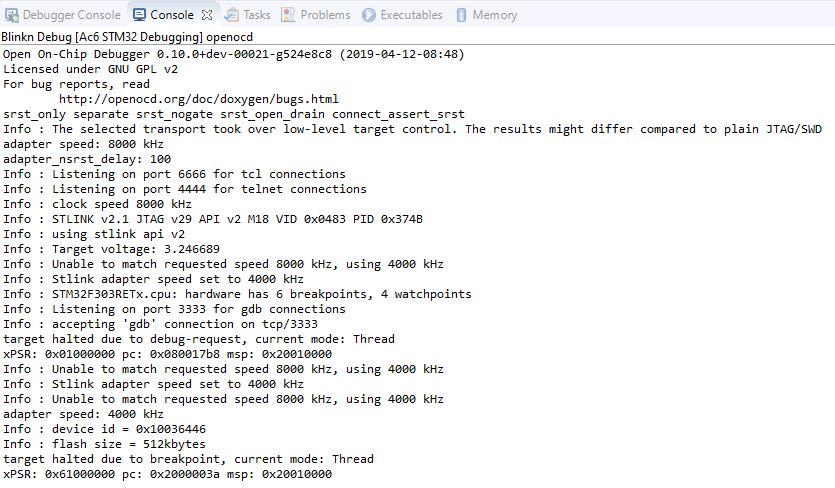

I’m new to System Workbench and I’m running a basic blink example using a Nucleo-F303RE. When I Run As Ac6 STM32 C/C++ Application, the LD2 in the Nucleo is blinking as expected. Now, I’m trying to Debug As Ac6 STM32 C/C++ Application, because I wanted to experiment the debugging functions of the workbench. However, when I try to add breakpoints and debug the program, the breakpoint does not pause and it just marks the breakpoint with a checkmark. It stops only at the HAL_Init(); even though I did not add a breakpoint there. Since the breakpoint does not execute, the LD2 does not blink when I run in debug mode.
