Ac6 + STM32 + STLink-V2 debug environment issues

Posted by akirazhao on 2020-04-02 08:39

Hi,

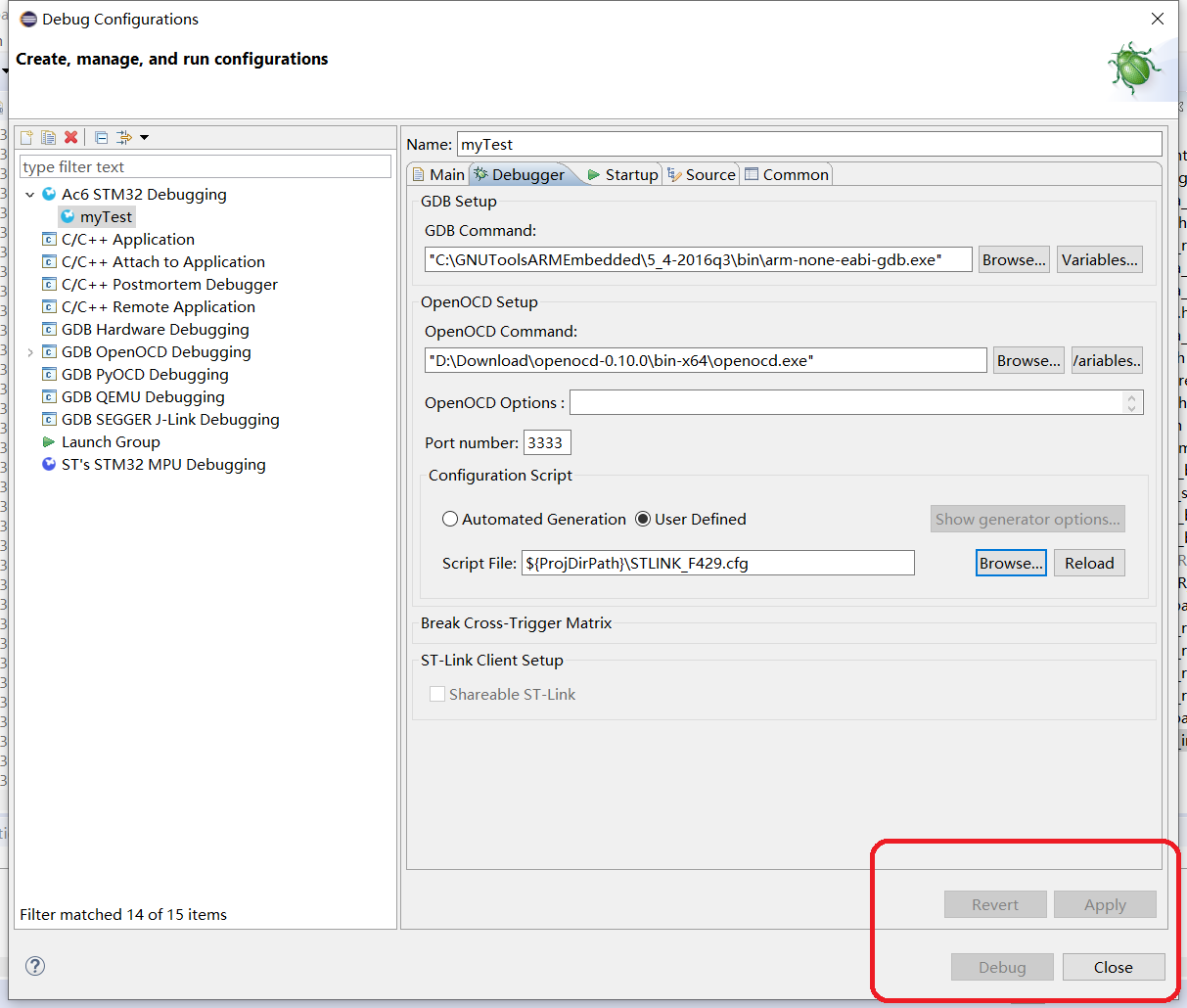

As attached, when I tried to debug with Ac6 STM32 Debugging, the Debug button is invalid.
Could anyone help me to figure out how to setup the debug environment with Ac6 + STM32 + STLinkV2？


Reads: 5771

Link

Posted by tang on 2020-04-02 09:34

Hi,

“Ac6 STM32 Debugging” is only compatible with project created with the toolchain “Ac6 STM32 MCU GCC” in which you must define a board and a mcu (because some debug information are linked to the target). Are you sure your project was created this way and not using feature provided by plugins you’ve installed yourself manually ?

Regards,
Kevin

Link

Posted by akirazhao on 2020-04-02 10:11

Thanks Kevin, your opinion is very useful, I’m sure that the project was not created with Ac6 toolchain.
Let me try to make a new project with Ac6 toolchain at first. Thanks a lot!
BTW, how can I setup the environment with GDB openOCD debugging? When I tried to work on it, my project couldn’t enter the main() code like this.
