You are viewing a reply to Error: jtag status contains invalid mode value - communication failure

Error: jtag status contains invalid mode value - communication failure

Posted by sergeyzwezdin on 2018-10-26 07:16

Thank you! I’ve removed the capacitor and it works ok.

But SW’s reset signal is still longer:

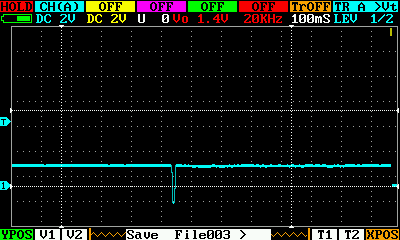

SW:
Sw

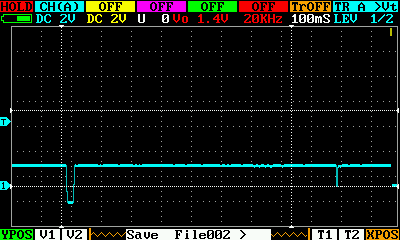

st-flash:
St Flash

ST’s datasheetQuestion mentioned to put 0.1uF capacitor there.
Is it possible to reduce NRST impulse length when I run it from SW?
