Posted by soulcont on 2017-04-21 15:40

Hi diprog

As they say, ” STM32F100C4Tx.cpu: hardware has 6 breakpoints, 4 watchpoints ” .
In my opinion you have too many breakpoints in your debbung system.
You need to remove them and it will works.

Best regards
Souleymane ( AC6-Training)

Posted by nichtgedacht on 2017-04-24 23:33

Hi

You have to connect a reset line or else use a non default openocd local script (i.e. reset_config srst_nogate) or else override the default in run/debug config with openocd option.

Dieter

Posted by zheka16087 on 2017-04-26 12:47

I use this device for program my STM32f407vgt6 controller, and I have same issure

-----------------------
‘’Info : Unable to match requested speed 2000 kHz, using 1800 kHz
Info : Unable to match requested speed 2000 kHz, using 1800 kHz
adapter speed: 1800 kHz
Error: timed out while waiting for target halted
TARGET: stm32f4x.cpu - Not halted
in procedure ‘reset’
in procedure ‘ocd_bouncer’

Error: Target not halted
Error: failed erasing sectors 0 to 1
Error: flash_erase returned -304’’
-----------------------
for program controller i use stlink v2 mini (http://www.waveshare.com/st-link-v2-mini-stm32.htm)
By default, the microcontroller is not programed openstm32.
before modifying cfg file

than i google some information and modifying some lines

modifying cfg file

and result (program works good):
the result

but debug do not work

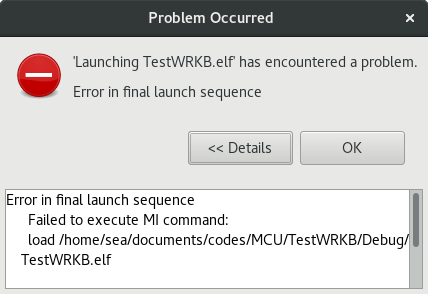

debug error

What can be the problem?

also st-link v2 works fine
st-link v2

UPDATE:

How to solve this issure:

-----------
Info : Unable to match requested speed 2000 kHz, using 1800 kHz
Info : Unable to match requested speed 2000 kHz, using 1800 kHz
adapter speed: 1800 kHz
Error: timed out while waiting for target halted
TARGET: stm32f4x.cpu - Not halted
in procedure ‘reset’
in procedure ‘ocd_bouncer’

Error: Target not halted
Error: failed erasing sectors 0 to 1
Error: flash_erase returned -304
-----------

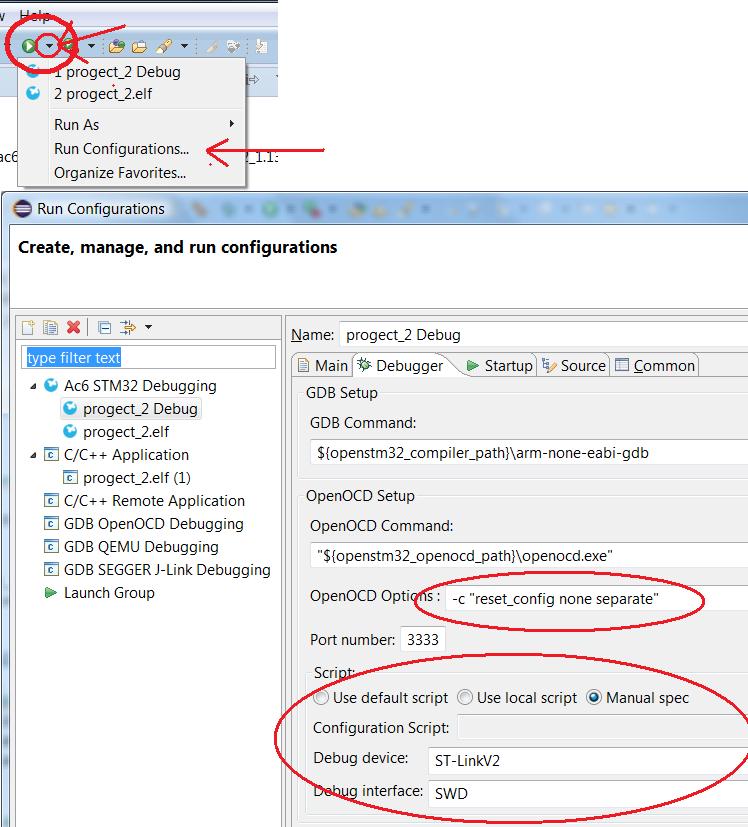

see attached photo

text: -c “reset_config none separate”

Posted by jongarces on 2017-04-26 16:42

Is there any problem with last version? I am facing this problem after updating to lates version. after downgrading the problem dissapears...

Regards,

Jon
