System Workbench for STM32

Forum List Topic List

[ prev topic ]
Posted by Vetch on 2016-12-19 14:16

Hello
Please, may you provide the logs from the console tab?

Link
Posted by konje on 2016-12-19 14:33

Hello Vetch,

here you go:

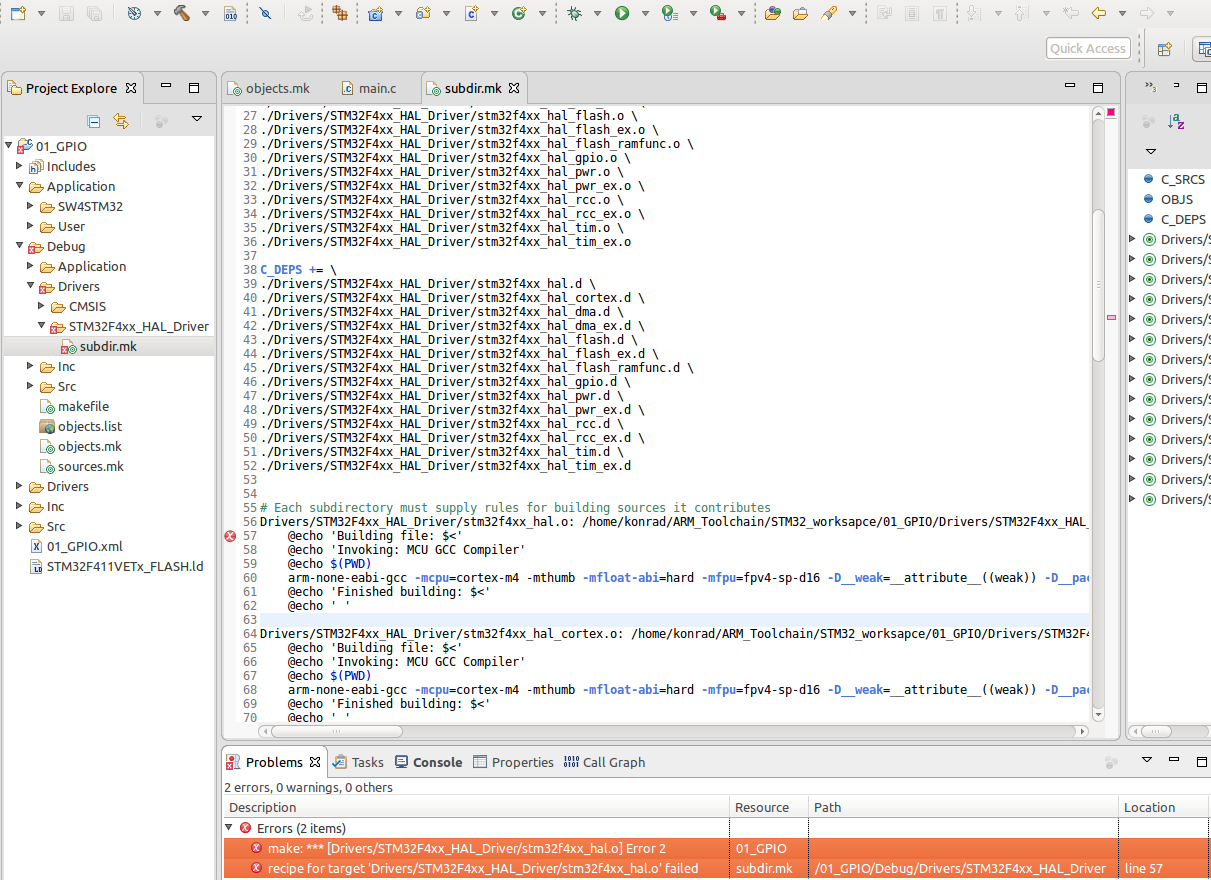

13:34:58 **** Build of configuration Debug for project 01_GPIO ****
make all
Building file: /home/konrad/ARM_Toolchain/STM32_worksapce/01_GPIO/Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_hal.c
Invoking: MCU GCC Compiler
/home/konrad/ARM_Toolchain/STM32_worksapce/01_GPIO/SW4STM32/01_GPIO/Debug
arm-none-eabi-gcc -mcpu=cortex-m4 -mthumb -mfloat-abi=hard -mfpu=fpv4-sp-d16 -Dweak=attributeweak -Dpacked=attributepacked -DUSE_HAL_DRIVER -DSTM32F411xE -I”/home/konrad/ARM_Toolchain/STM32_worksapce/01_GPIO/Inc” -I”/home/konrad/ARM_Toolchain/STM32_worksapce/01_GPIO/Drivers/STM32F4xx_HAL_Driver/Inc” -I”/home/konrad/ARM_Toolchain/STM32_worksapce/01_GPIO/Drivers/STM32F4xx_HAL_Driver/Inc/Legacy” -I”/home/konrad/ARM_Toolchain/STM32_worksapce/01_GPIO/Drivers/CMSIS/Device/ST/STM32F4xx/Include” -I”/home/konrad/ARM_Toolchain/STM32_worksapce/01_GPIO/Drivers/CMSIS/Include” -Os -g3 -Wall -fmessage-length=0 -ffunction-sections -c -fmessage-length=0 -MMD -MP -MF”Drivers/STM32F4xx_HAL_Driver/stm32f4xx_hal.d” -MT”Drivers/STM32F4xx_HAL_Driver/stm32f4xx_hal.o” -o “Drivers/STM32F4xx_HAL_Driver/stm32f4xx_hal.o” “/home/konrad/ARM_Toolchain/STM32_worksapce/01_GPIO/Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_hal.c”
/bin/sh: 1: Syntax error: “(” unexpected
make: *** Drivers/STM32F4xx_HAL_Driver/stm32f4xx_hal.o Error 2
Drivers/STM32F4xx_HAL_Driver/subdir.mk:57: recipe for target ‘Drivers/STM32F4xx_HAL_Driver/stm32f4xx_hal.o’ failed

13:34:58 Build Finished (took 144ms)

Link

Posted by Vetch on 2016-12-19 15:05

Please, may you check the following symbols :
- Right-click on the project >> Properties >> C/C++ Build >> Settings >> Tools Settings tab >> MCU GCC Compiler >> Symbols
- As you are not a Windows user, add ’ or ” for the weak and packed symbols. For example:


__weak='__attribute__((weak))'
__packed='__attribute__((__packed__))'
Link
Posted by konje on 2016-12-19 15:36

Thank you very much for that!
It solved the problem!

Link


Posted by daguro on 2016-12-27 23:46
Yes, many thanks!
Link

Posted by borrisl on 2016-12-29 11:11
This is a serious bug in the NEW version of Cube MX. They say they will fix it ASAP and the fix is 2 lines of code, but as of yet they haven’t fixed it.
Link

Posted by tomas_z on 2017-01-16 09:36

Hallo,

I had the same problem. I have transferred project from one machine to another machine. Both on Windows7 system. On target system was necessary to update sybol definition and add ” around attributes definitions.

I don’t understand why the origin system compile the project correctly?

Link

Posted by Vetch on 2017-01-16 12:39

Hi Tomas_Z
On Windows there is no real issue. You are right : the projects are compiled correctly, but Eclipse detects some syntax error (minor) due to the double quote usage.
The main issue occurs on Ubuntu or OS-X while the double quotes are missing then the projects are not compiled correctly.

Link


Posted by pushparaj on 2020-09-11 08:49

Hello,

I have downloaded the firmware”en.stm32cubef7_v1-16-0” from ST.com to run a “STemWin” project under “demonstration” folder for “STM32F769I-Discovery”.

While Build project i get the following error
Middlewares/USBH_Library/Core/subdir.mk:27: recipe for target ‘Middlewares/USBH_Library/Core/usbh_core.o’ failed
make: *** Middlewares/USBH_Library/Core/usbh_core.o Error 2

Any one help me running this demo programme in STM32F769I disco board successfully.

STemwin demonstration for STM32f769I Discovery.png (126.81 Kb)
Link
Posted by pushparaj on 2020-09-14 10:17

Remove bracket ) from the path.
Then compile it will run without error.

Link
Posted by siranjeevi on 2020-10-07 11:53

HI...
i am facing same issue but i can not solve...
how to remove that bracket in path...
Kindly explain details...
i did not get that path.. that why i asking ...
pls reply...



Thanks Reg,
Siranjeevi

Link
