Posted by Murray on 2016-09-11 23:58

I’m trying to start a new C++ project for the STM32F3DISCOVERY board.

1. I choose new C++ project
2. I enter a name
3. I choose As6 STM32 MCU GCC
4. I click Next - It advances to the Configuration screen
5. I click Next with both Debug and Release selected
6. I choose the STM32F3DISCOVERY board

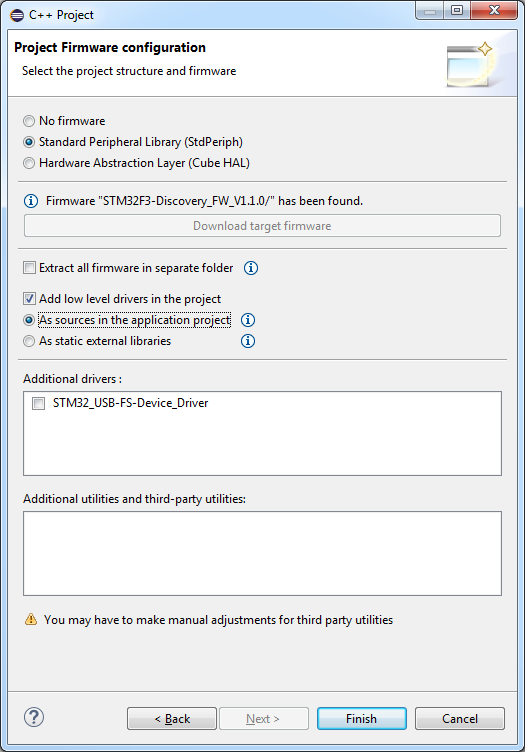

7. I choose the Standard Peripherial Library (StfPeriph) firmware. It shows “FirmwareSTM32-Discovery_FW_V1.1.0/” has been found.
8. I click Finish

It creates a basic project with a minimal main.c which will not compile because it cannot include “stm32f30x.h” and “stm32f3_discovery.h”. I scanned my disk looking for them but they are not there. Where should a user expect to find these files? Do I have to download and install them manually from somewhere? I would have expected them to be part of the STM32F3DISCOVERY firmware download, but apparently not. Any guidance would be appreciated.

I am running on Win7 64-bit using:

• OpenSTM32 IDE 1.10.201607251855
