You are viewing a reply to SD card on stm32f7-discovery board problem ?

SD card on stm32f7-discovery board problem ?

Posted by tarek bouchkati on 2016-08-09 09:59 Tunisia

the main differences are the generated linker script (LinkerScript.ld) vs the original one (STM32F746NGHx_FLASH.ld)
and project settings (especially linker miscellaneous flags)

Reads: 2944
Link
Posted by skovholm on 2016-08-09 19:12

THANKS TAREK BOUCHKATI...

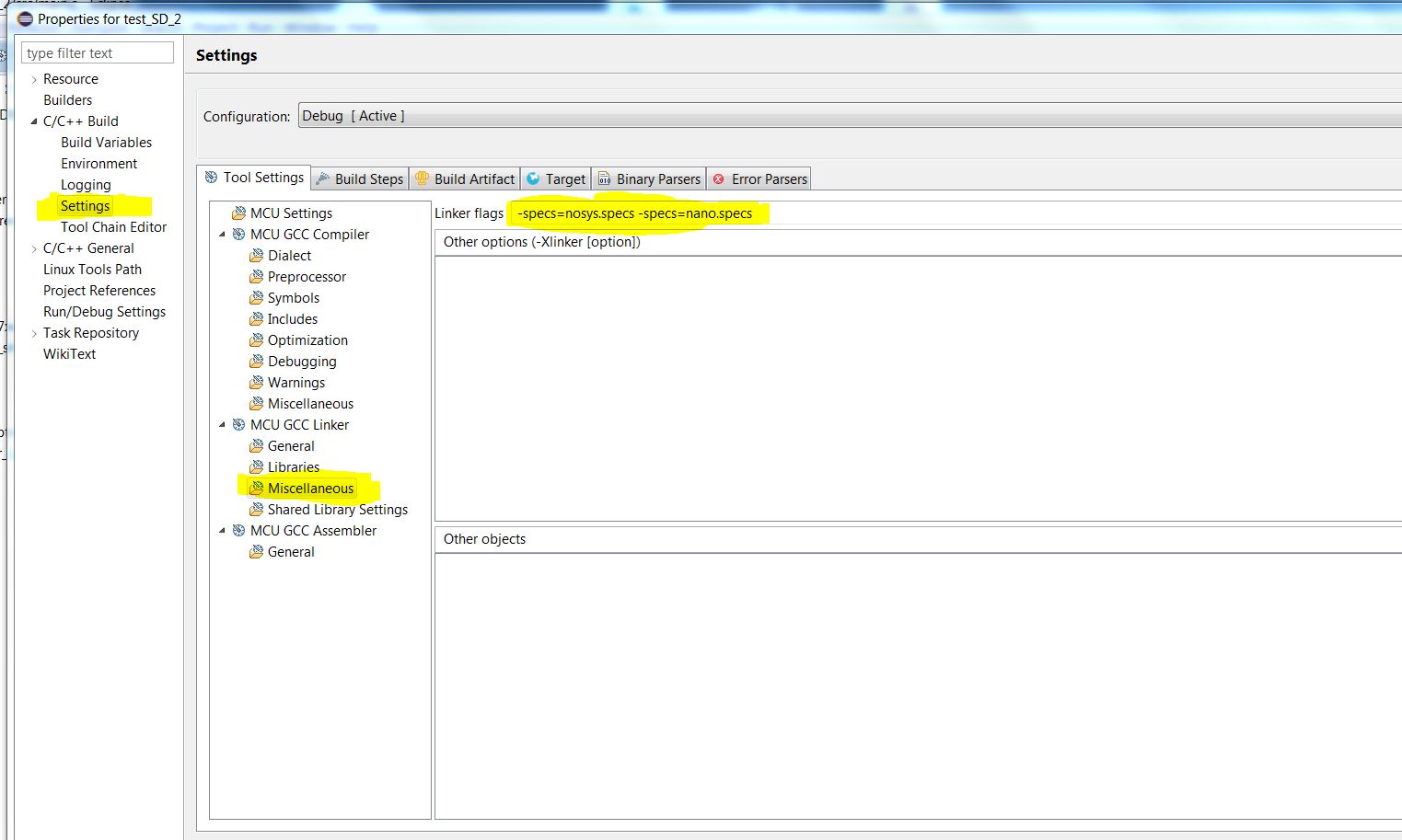

The linker files was the same but the solution was the missing linker instrulction as you can see in the attached images

I did try to google to learn was happend when setting -specs=nosys.specs -specs=nano.specs but can not see how it can influence on FATFS ..

But you are my hero today ;o)

Hjalmar
