Failure to launch
SOLVED IT

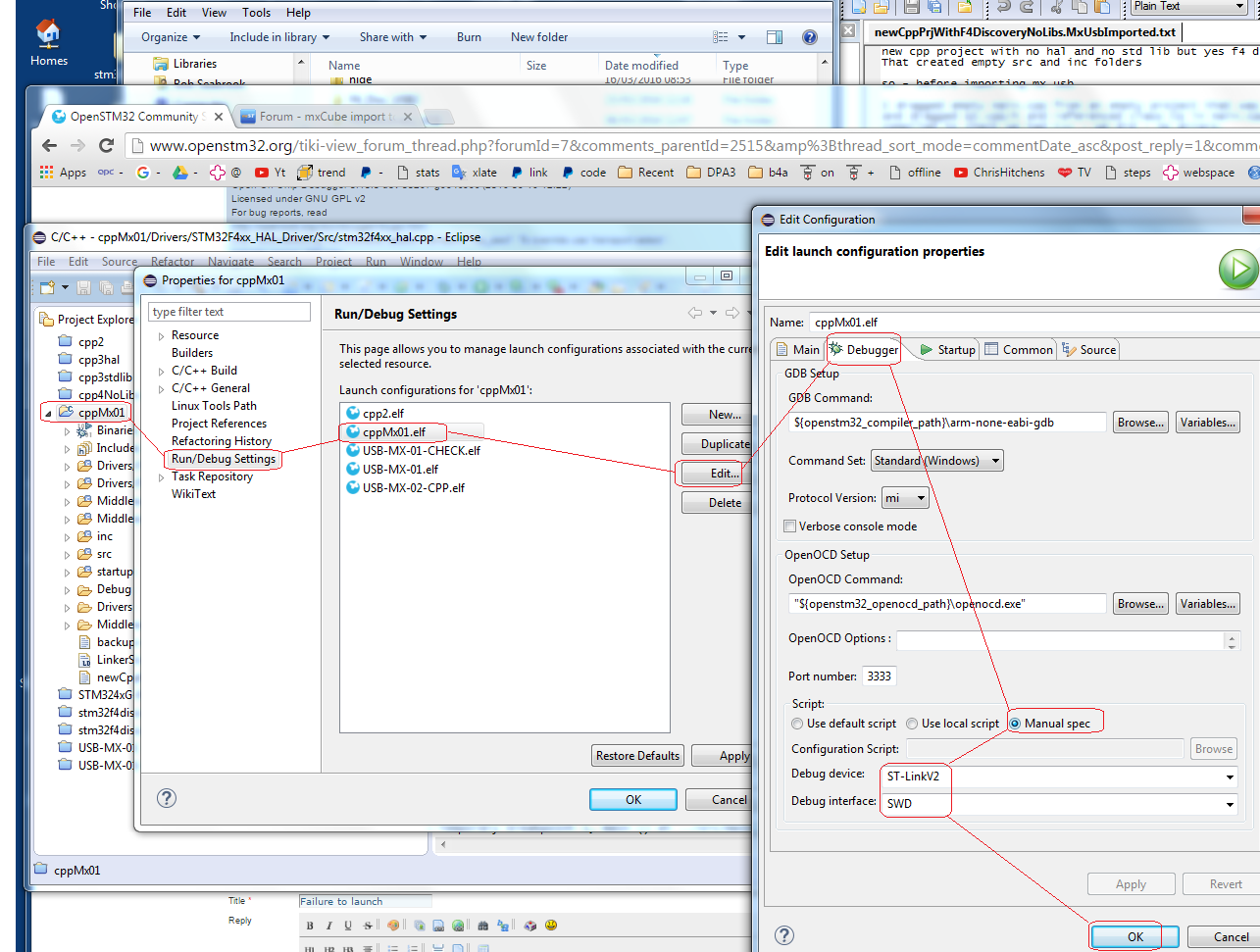

see attached picture.
Somehow the debugger was using
. (o) Use Default Script
and using script:
. stm32f4discovery.cfg
which seems fine but it is better to use
. (o) Manual Spec (NOT (o) Use default script)
. Debug device: ST-LinkV2
. Debug Interface: SWD
..since the ST-LinkV2 interface is provided on the F4Discovery board!! And it works. Thanks for looking.
