Posted by tarek bouchkati on 2016-04-07 14:45

Hello,

have you tried to connect under reset (-c SWD UR)

-c SWD UR -P ${workspace_loc}${config_name:{project_name}}\${project_name}.bin 0x08000000 -Rst

>> My opinion is ST-LINK_CLI.exe isn’t proper for .bin file downloading? If it is true how can I build .hex file?
ST-Link_CLI is proper for .bin & .hex loading
If you are looking to generate .hex file, this is possible through :
Project Properties > C/C++ Build > Settings > Build Steps (TAB) > Post-build steps :
replace this command:

arm-none-eabi-objcopy -O binary "${BuildArtifactFileBaseName}.elf" "${BuildArtifactFileBaseName}.bin"

by the following command:

arm-none-eabi-objcopy -O ihex "${BuildArtifactFileBaseName}.elf" "${BuildArtifactFileBaseName}.hex"

Edit :
You can also program you chip using SystemWorkbench (without debug)
in Project Explorer view > right click in your project > contextual menu > Target > Program chip

Regards,
Tarek

Posted by namcho on 2016-04-07 15:30

Thanks for extra informations. The last option is working well.I’ll continue with that

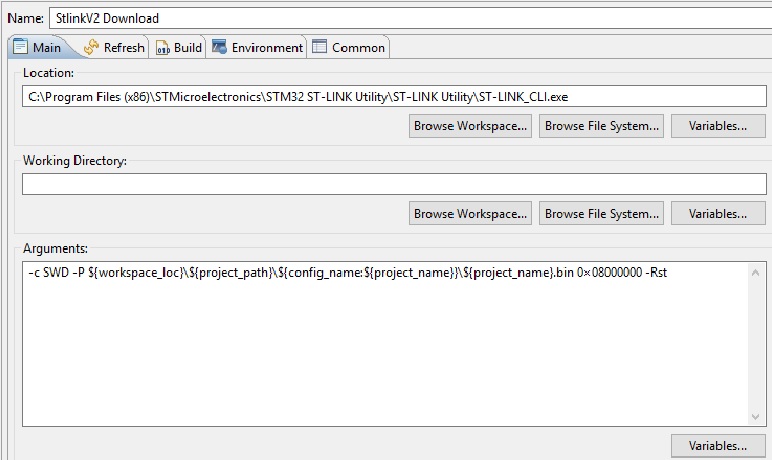

-c SWD UR -P ${workspace_loc}${config_name:{project_name}}\${project_name}.bin 0x08000000 -Rst this command also isn’t worked for me. I cant figure out why that method isn’t worked. While I was using ARM-GNU plugn-in I was downloading like that.

Best regards,
Nazım
