SW4STM32 and SW4Linux fully supports the STM32MP1 asymmetric multicore Cortex/A7+M4 MPUs

   With System Workbench for Linux, Embedded Linux on the STM32MP1 family of MPUs from ST was never as simple to build and maintain, even for newcomers in the Linux world.
And, if you install System Workbench for Linux in System Workbench for STM32 you can seamlessly develop and debug asymmetric applications running partly on Linux, partly on the Cortex-M4.
You can get more information from the ac6-tools website and download two short videos (registration required) highlighting:

System Workbench for STM32

Re: workspace woes how to add a project


this should be an easy way to create and launch a Debug Configuration:

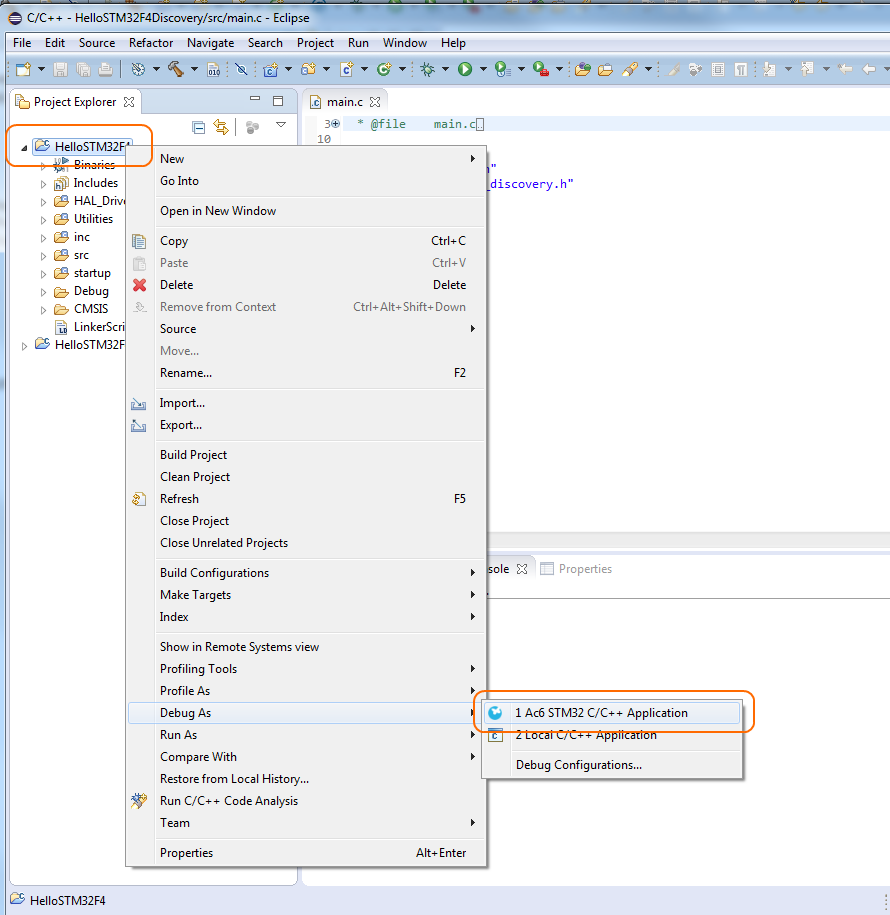

  • Right click on your project in the Project Explorer view to open the context menu
  • Select the Debug As > 1 Ac6 STM32 C/C++ Application command

The IDE:

  • creates a debug configuration
  • fills it with the all the needed value (you can check it)
  • program the board, and
  • start a debug session

STW DebugLaunch 1

Of course there are other way to do the same task (using the Menu or the button in the Toolbar).

About the IDE learning curve, you are probably right. I’m only an Eclipse enthusiast. But, I can’t find a better IDE for embedded application.And I have also used many IDE in my life. :-)
Eclipse, for example, provides a lot of power features to analyze source code, if you organize your project in a proper way (use Source Folder instead of simple Foder to store your source files, aldo for the header; keep all your project files in the project, don’t excude the headre, etc.). Moreover I think also to the potentiality of Eclipse. It is possible to extend it with plugins in order to address the need of specific class of embeded application. Maybe in a future version we have CubeMX integrated in SystemWorkbench. What is your favorite IDE?
