STM32F407ZGT6 PROGRAMMING WITH PEO PE2 pins ?

Posted by hasalasri on 2021-09-10 20:57

I’m trying to reprogram a custom STM32F407ZGT6 board however the 4pin programming port connectors are Vdd PE0 PE2 GND.
I looked in the datasheet but didn’t find any programming functions related to PE0 PE2. Could it be a custom bootloader that uses these pins?

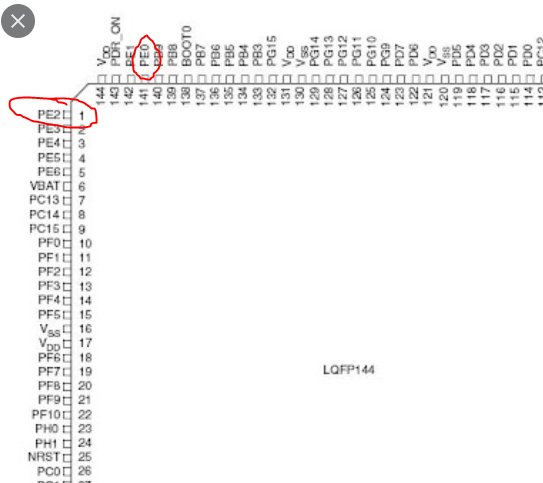

Pinout
