Unable to build project

Posted by GanLan on 2017-08-29 16:38

Hi,

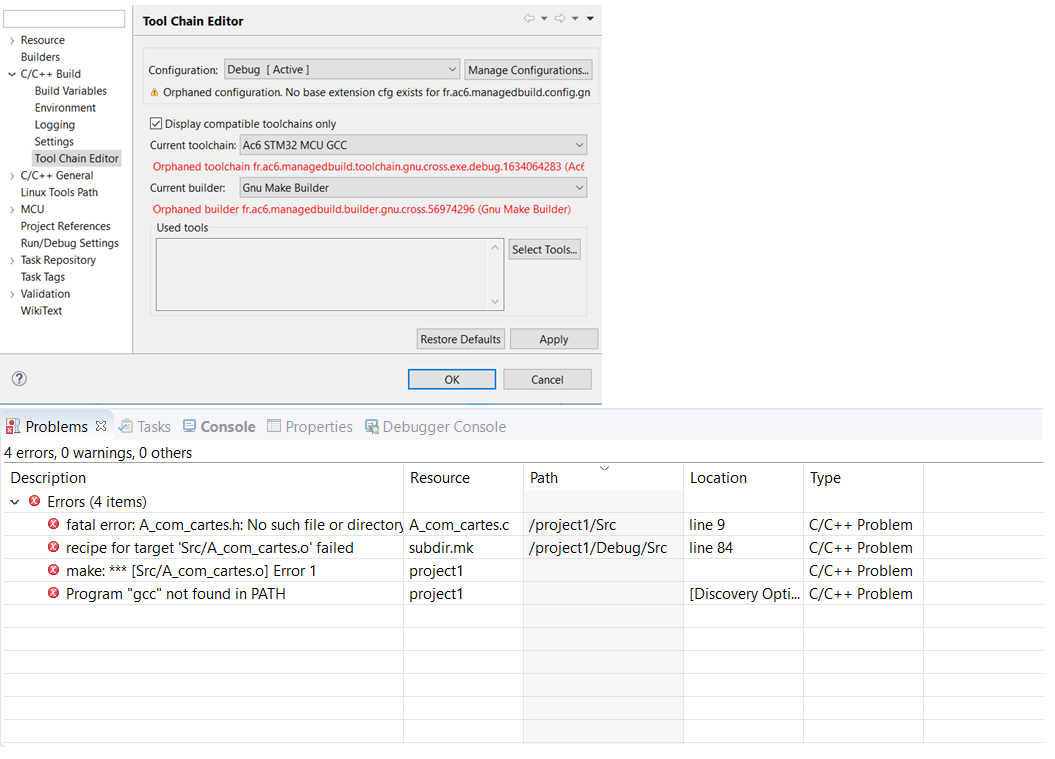

I’ve just imported a project and I’m having a lot of issues with it. When I tried to build it, a message appeared saying that there was nothing to build. I figured out that the toolchain and builder used are different than the ones I have downloaded (It used to be Ac6 STM32 MCU GCC and GNU make builder, both were designated as “orphaned” in the toolchain editor tab). (see attached file)

I tried to change these to ARM Cross GCC and Gnu Make builder but I only ended up with this error in the console :

15:22:01 **** Incremental Build of configuration Debug for project project1 ****
make all
Building file: ../Src/A_com_cartes.c
Invoking: GNU ARM Cross C Compiler
arm-none-eabi-gcc -mcpu=cortex-m3 -mthumb -O2 -g -std=gnu11 -MMD -MP -MF”Src/A_com_cartes.d” -MT”Src/A_com_cartes.o” -c -o “Src/A_com_cartes.o” “../Src/A_com_cartes.c”
../Src/A_com_cartes.c:9:26: fatal error: A_com_cartes.h: No such file or directory
Src/subdir.mk:84: recipe for target ‘Src/A_com_cartes.o’ failed
compilation terminated.
make: *** Src/A_com_cartes.o Error 1

15:22:02 Build Finished (took 924ms)

See attached file for problems tab



I’m on Windows 10, working with Eclipse Neon.3 Release (4.6.3)
Java : jdk1.8.0_144
GNU MCU Eclipse 4.1.1 (GCC 5.4)
board : STM32F401C-DISCO
MCU : STM32F411VET6U

I have no idea what’s going on, does anyone know how to solve this issue?

Thanks

Reads: 27825
Link
Posted by Mr. Robot on 2017-08-30 13:57

Hi GanLan,

Your project is an Ac6 project that means if you want to compile and debug this project you need to download the Ac6 plugins.
The toolchain “Ac6 STM32 MCU GCC” is included in Ac6 plugins that is why you have an “orphaned toolchain”.

I suggest you to install the Ac6 update site with this p2 software repository:
http://www.ac6-tools.com/Eclipse-updates/org.openstm32.system-workbench.update-site-v2/
Then your project should compile normaly.

BR,
Elliot

Link
Posted by GanLan on 2017-08-30 19:02

Thank you for your quick reply,

I have installed the toolchain you suggested through help >> Install New Software and I copied the link you gave me in the “work with” menu bar.
I selected every single options given in the download menu.
Unfortunately, the Ac6 toolchain remains orphaned... Any idea?

GanLan

Link
Posted by Mr. Robot on 2017-08-31 09:47

Hi GanLan,

Did you restart your eclipse after the installation of Ac6 plugins?

BR,
Elliot

Link

Posted by GanLan on 2017-09-01 07:43

Hi Elliot,

It did restart automatically after the package download and I restarted it manually after your message but nothing changed.

GanLan

Link
Posted by Mr. Robot on 2017-09-01 08:15

Hi,

Is it possible to check if the folder < workbench_installation_folder >/plugins/fr.ac6.mcu.externaltools.arm-none.win32_< version_number >/tools/compiler/bin is well present and not empty? (When you restart your workbench after installing the Ac6 plugins, the toolchain is unzipped there)

If the toolchain is present, try to close and reopen your project. If the pb persist try to remove and re-import your project.

BR,
Elliot

Link
Posted by Serge LOPEZ on 2021-01-14 12:32

Hi Elliot
I met the same problem as GanLan met. I trying to open the project : Sgfx_ModemAT (B-L072Z-LRWAN1)
I proceed as explained in this post, But I could’nt build my project.
Also, I can not reach the folder < workbench_installation_folder >/plugins/fr.ac6.mcu.externaltools.arm-none.win32_< version_number >/tools/compiler/bin

Any imcome form your part will be welcome.
BR
Serge

Link

Posted by GanLan on 2017-09-02 12:34

Hi Elliot,

I removed and re-imported the project it now it works perfectly! Thank you very much for your assistance!

Best regards,
GanLan

Link

Posted by ashnabibin on 2018-07-24 08:29

Sir

Hi,

I’ve just created a new project and I’m having a lot of issues with it. When I tried to build it, a message appeared saying that ‘building is finished’.But lot of errors in console window. I figured out that binaries is missing under my file name in the project explorer. Please see the attachment showing the error message. Please reply.

Error.rtf (37.25 Kb)
Link
