Cube upgrade from 13 to 14
In the “Project Explorer format” thread Bernard suggested that I upgrade STM32CubeMX from version 4.13 to 4.14.
When you do that (at lease for the L476) new firmware (aka HAL) libraries also need to be downloaded. The cube update tried to download but can’t (probably because STMicro wants you to click a ‘I have read the warnings’ dialog). So the firmware goes from STM32Cube_FW_L4_V1.3.0 to STM32Cube_FW_L4_V1.4.0. You can get the firmware on STmicro’s site. The file goes in the STM32Cube Repository.
The 4.14 reads the old project file (yeah!) and requests permission to migrate it to the new version. It may have migrated the old cube file, but it did not migrate the main.c file.
It also does not create the file structure called for by AC6 (really the .cproject file).
No biggie, I had eclipse create new files in the displayed folders, located those folders and copied over my old main.c and assorted additional files.
There are errors everywhere in main.
So, I re-entered cube and had it regenerate everything.
It deleted the file structure that was displayed in AC6.
I recreated it and copied the main.c cube generated from it’s wrong location to the correct location.
Still lots of RED in main.c. Routines cube wrote do not compile.

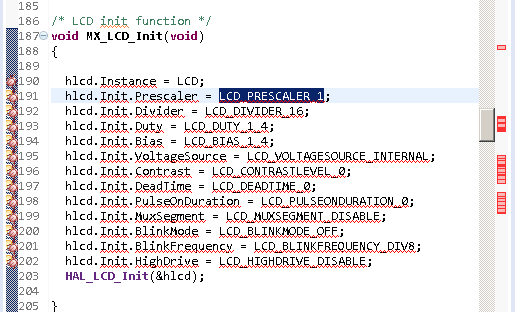

The hlcd structure has completely changed it’s definition (actually the Init member changed).
Anyone else having these problems?
-Matt
