Syntax error: Unterminated quoted string

Dear Dave,
You are using the latest version : it should be good.
I compiled and launched the debug successfully for the same project = DAC_SignalsGeneration for the STM32L476RG-Nucleo. Here is the way I used :
1 - Launch SW4STM32 and I select the workspace (inside the HAL) :
...\STM32Cube_FW_L4_V1.5.0\Projects\STM32L476RG-Nucleo\Examples\DAC\DAC_SignalsGen
eration\SW4STM32
2 - Right-click in the Project Explorer window >> Import >> General >> Existing Projects into Workspace >> Next >> Browse >> Select the project folder = STM32L476RG_NUCLEO >> Finish
3 - Right-click on the project >> Properties >> C/C++ General >> Indexer >> Enable project specific settings >> Remove the Index unused headers >> Apply >> OK
4 - Right-click on the project >> Properties >> C/C++ Build >> Settings >> Tool Settings tab >>MCU GCC Compiler >> Dialect >> ISO C99 >> Apply >> OK
5 - Right-click on the project >> Properties >> C/C++ Build >> Enable parallel build >> Apply >> OK
6 - Clean then Build

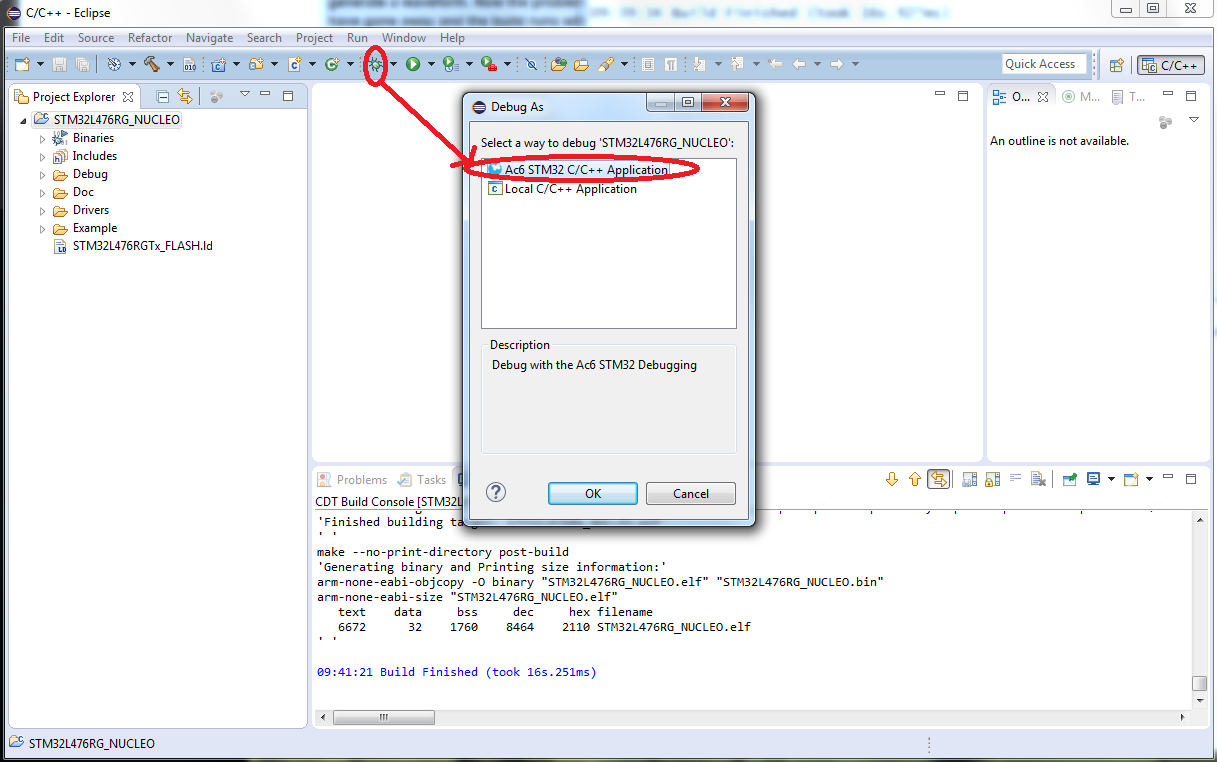

7 - Launch the Debug session as shown in the snapshot
